EVG GD6/102

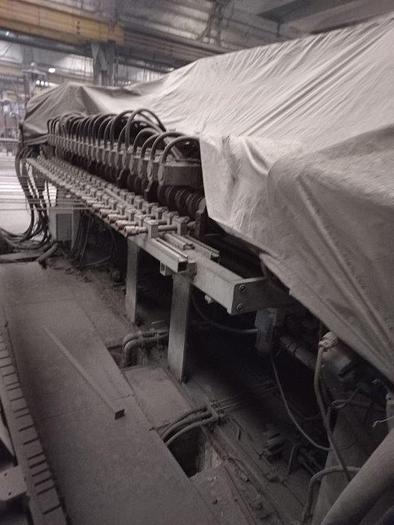

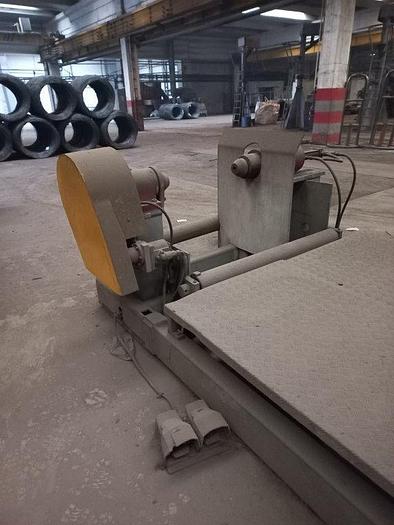

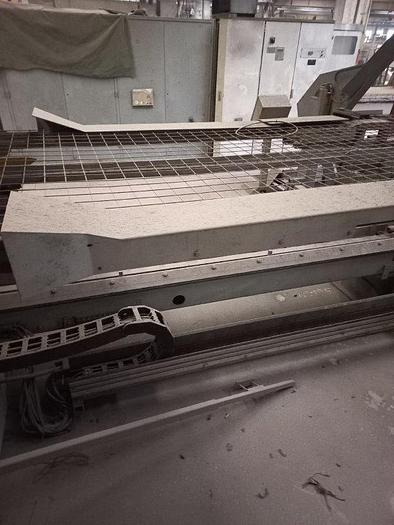

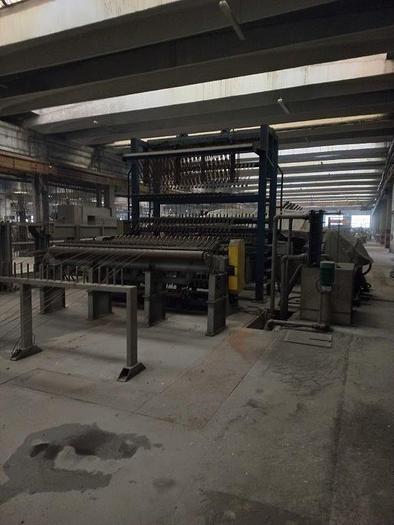

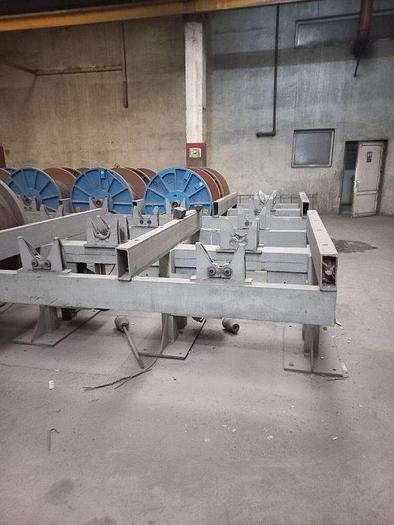

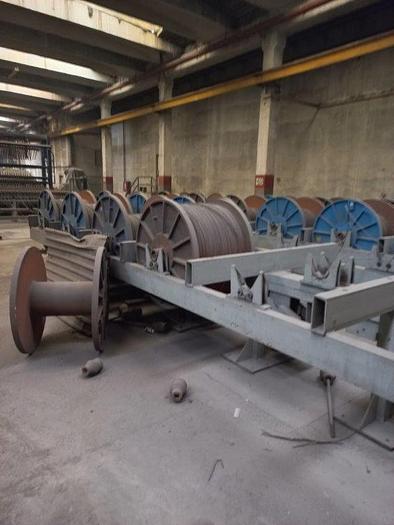

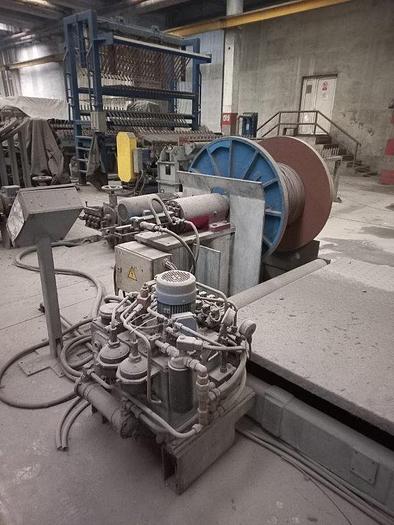

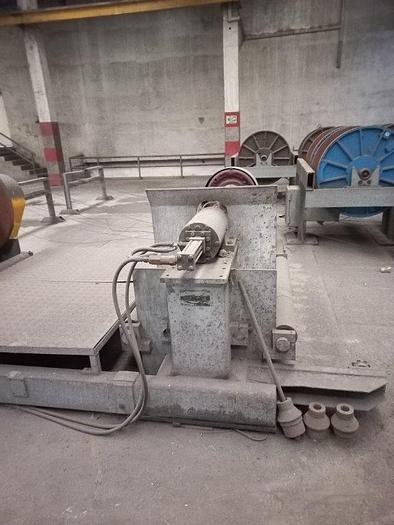

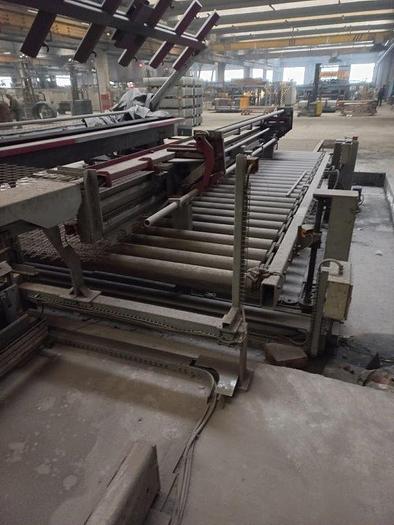

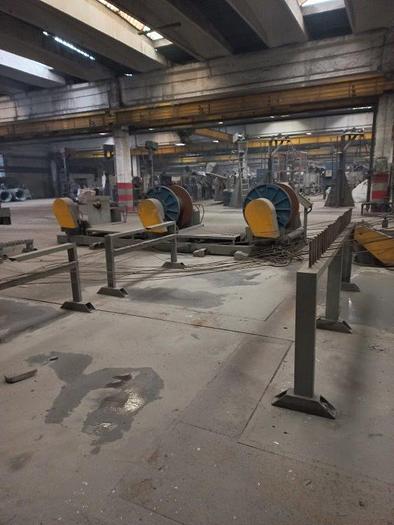

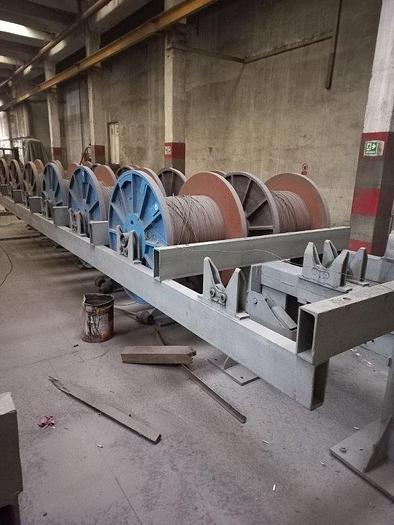

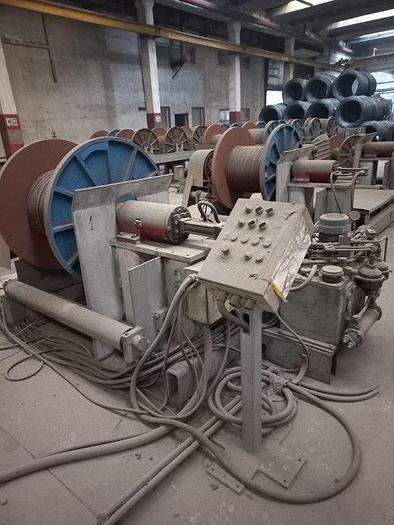

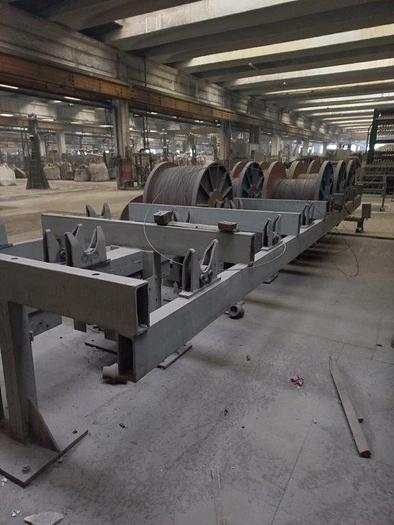

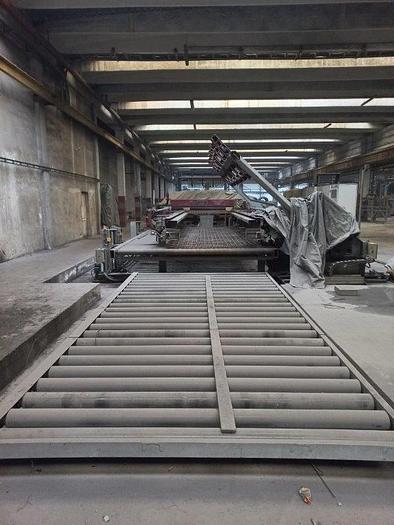

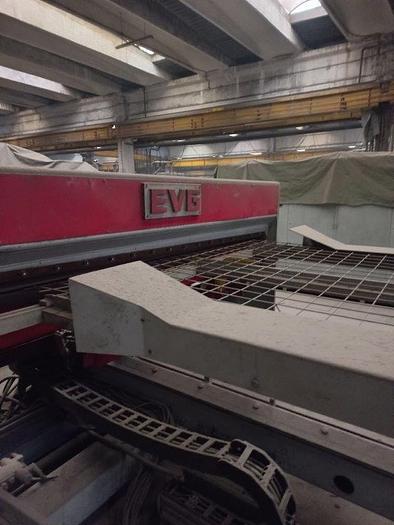

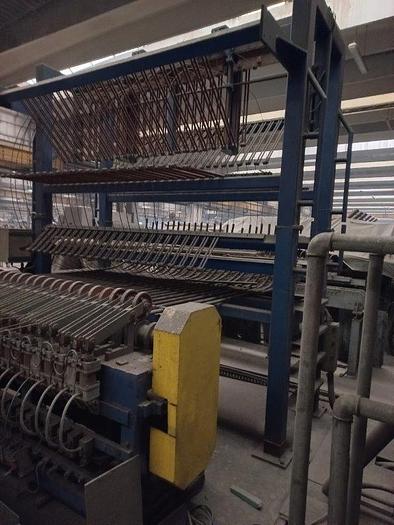

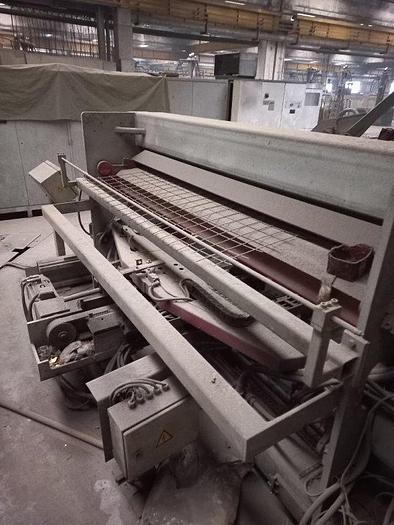

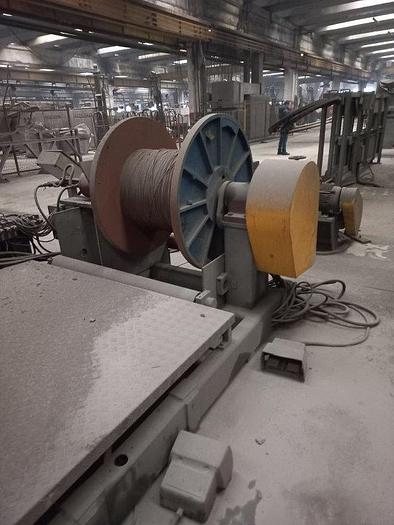

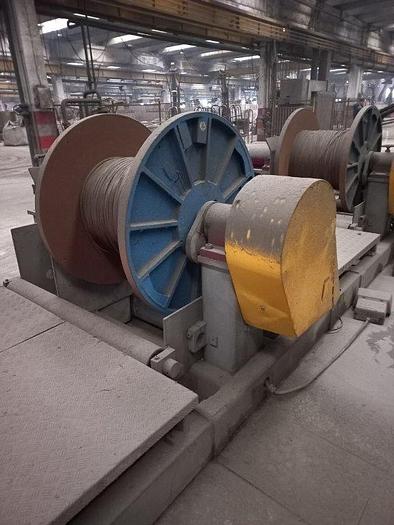

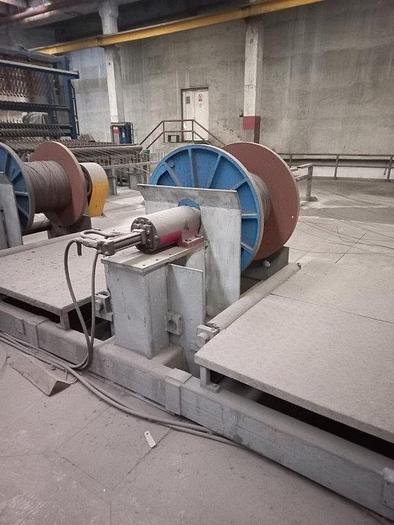

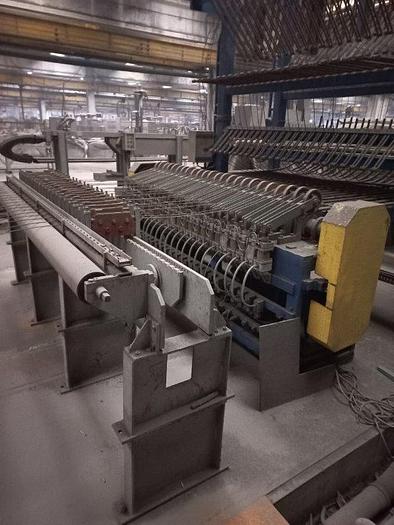

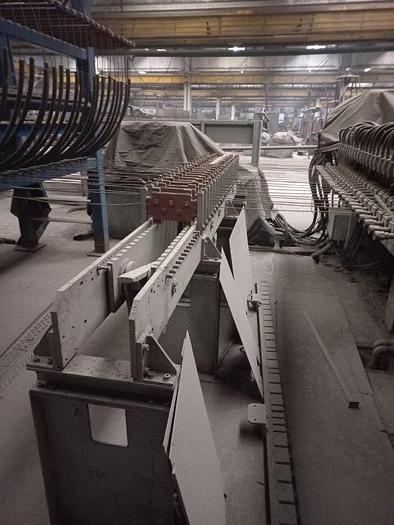

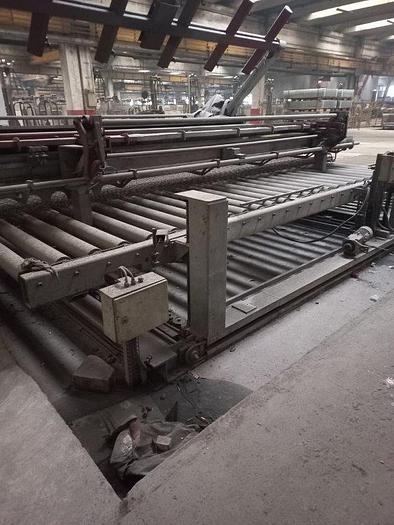

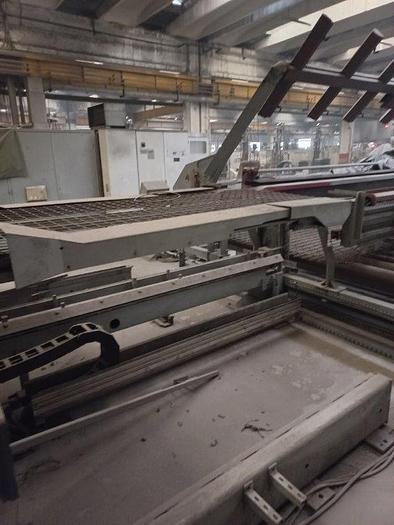

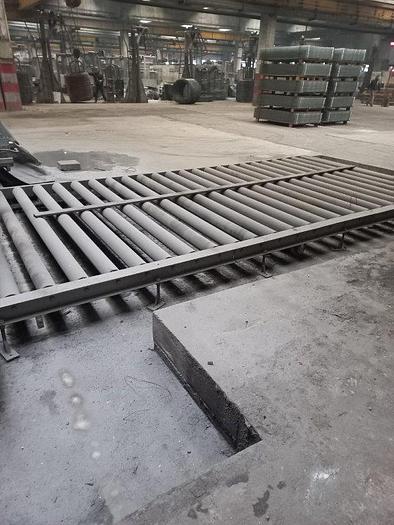

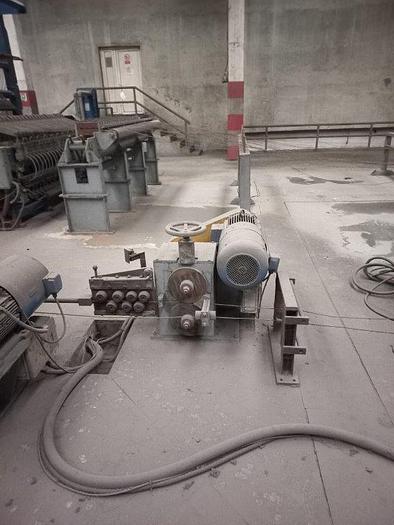

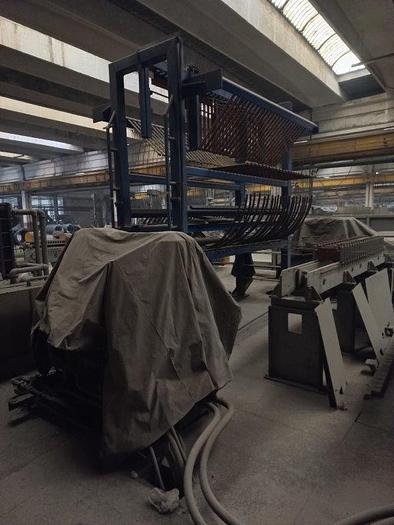

FULLY AUTOMATIC - Mesh welding line EVG GD6 Construction year – 1999. The line was refurbished in 2015. Production is stopped at the end of 2020. Available complete documentation. Spools are not included. Line wire pull-off system for 2 x 16 = 32 horizontal spools (spools by client) Line wire destressing unit DE 45/102 Line wire advance system TL RVD including pull-out and balancing device Cross wire advance system TQD 3000V Cross wire spool system SQ2 (2 pieces of spools) Welding machine EVG GD6-H: Working range: Number of line wires 20 Line wire diameter 3.3 – 10.0mm Cross wire diameter 3.3 – 10.0mm Cross wire spacing, steplessly adjustable from 100/150/200/250/300mm Line wire spacing (setting at delivery 100mm) 100/150/200/250/300mm Max. distance between outer line wires 2500mm Max. width of wire mesh 2400mm Connection voltage (three-phase current) 50 Hz Nominal rating at 50% duty cycle 3 phase 1400 kVA Drive capacity 162 kW Number of transformers at 50% duty cycle 10 at 140 kVA Cooling water 150 l/min Line wire shear MD 35/102 Automatic mesh turning and stacking T 60/102 unit for max. 6 m Connecting roller conveyor Control unit, Siemens Simatic S7 – NEW
