Wire drawing line FRIGERIO 560.9

Drawing machine FRIGERIO RT560.9

Max INLET wire diameters – 6.00 / 5.00 mm

OUTLET wire diameters – 1,50 / 1,60 mm

Line is suitable for low and middle carbon wire.

Line composed of:

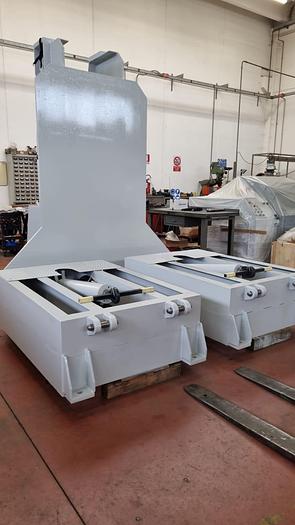

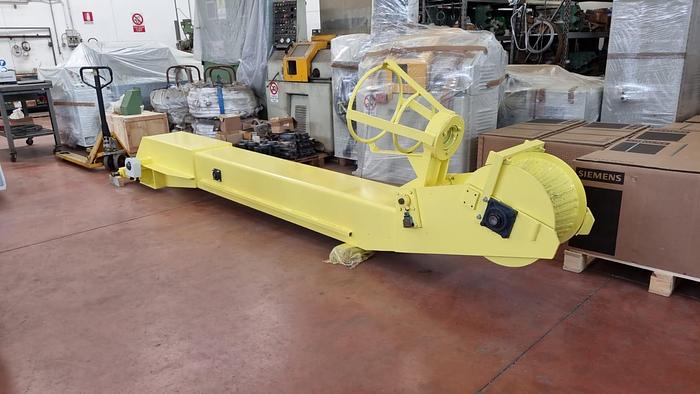

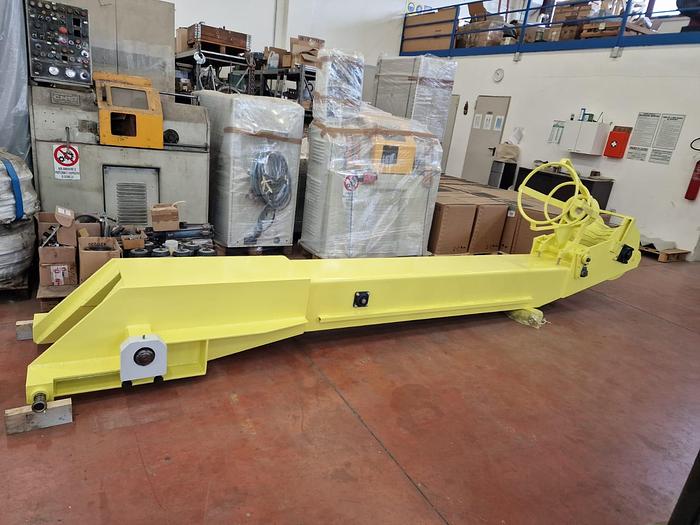

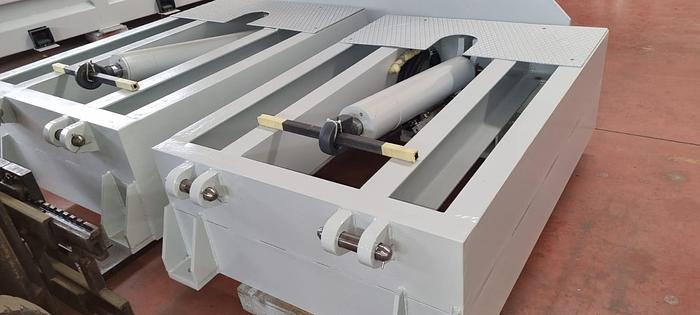

- vertical payoff, composed of tilting pole + 2 hydraulically tilting reels

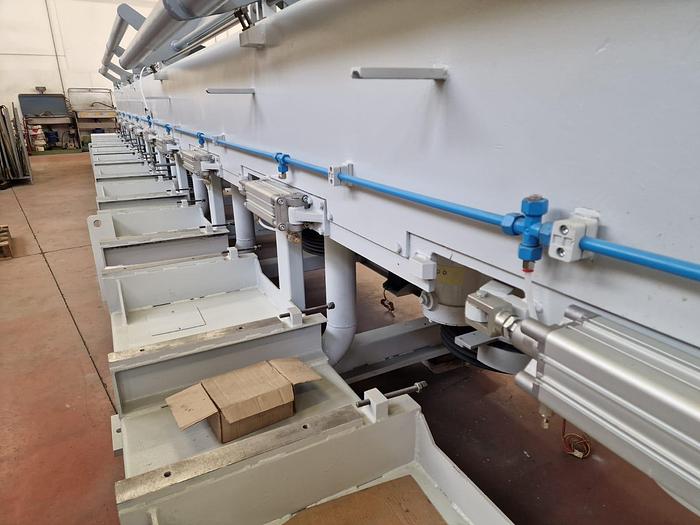

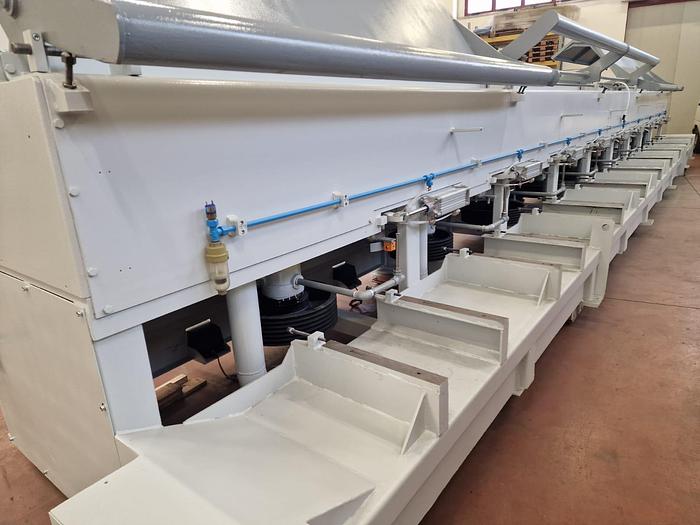

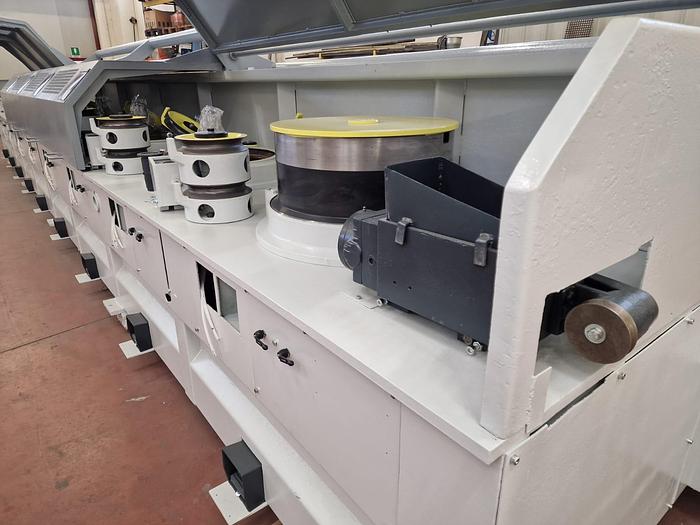

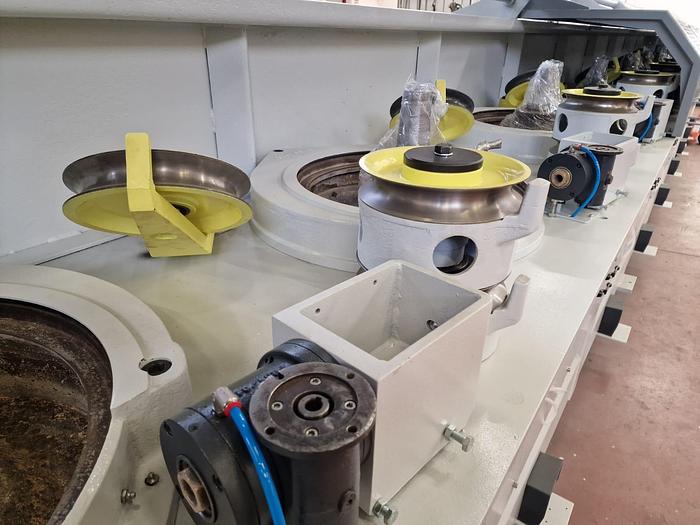

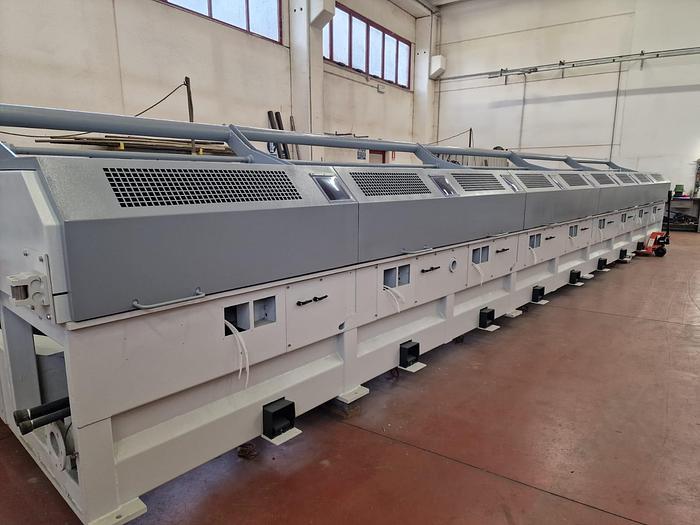

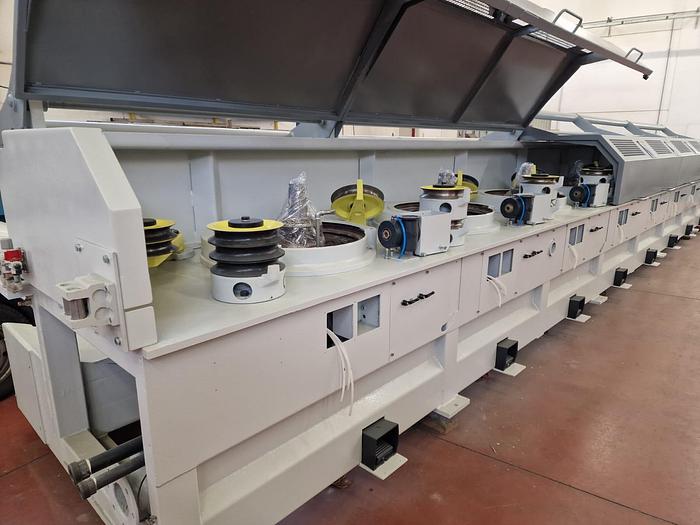

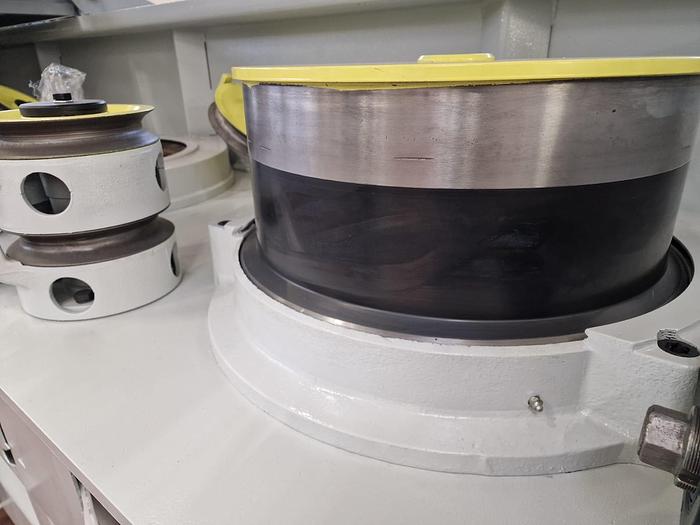

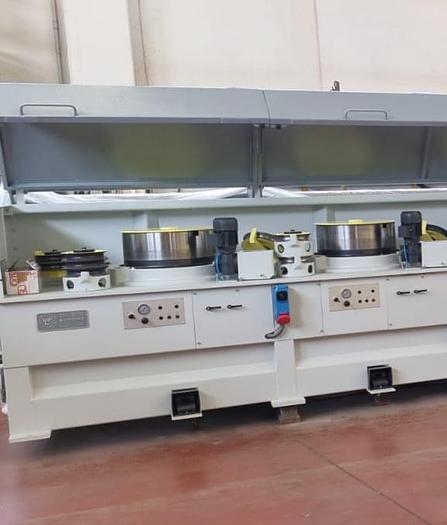

- dry drawing machine 9 steps, complete with 560 mm diameter capstans with ceramic coating.

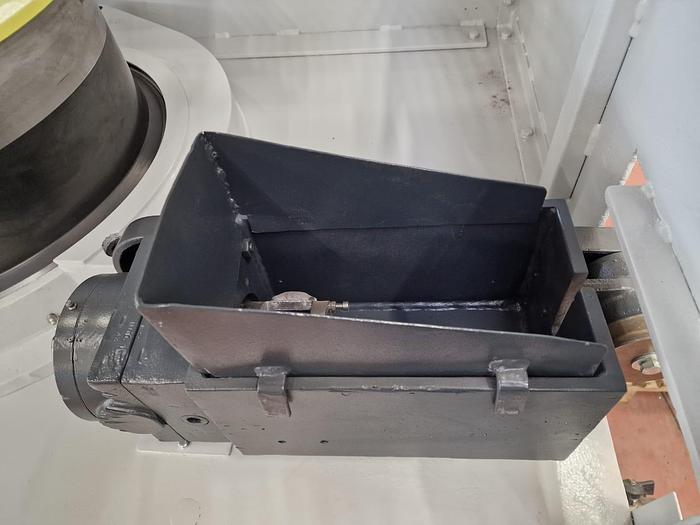

Fixed type wire drawing cassettes, complete with rotating mixer.

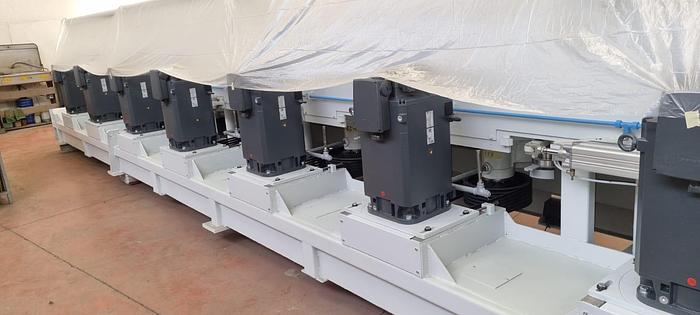

9 new AC motors of 37 KW.

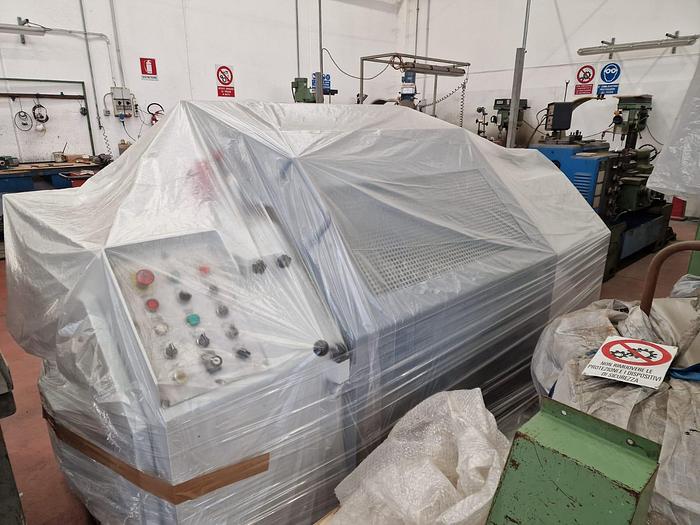

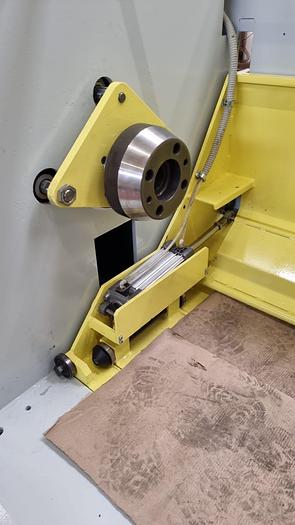

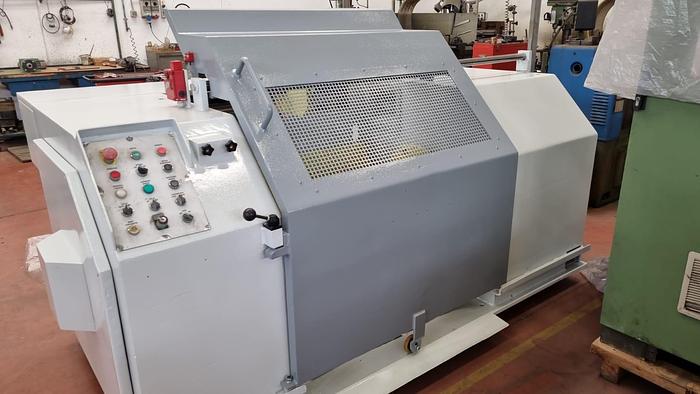

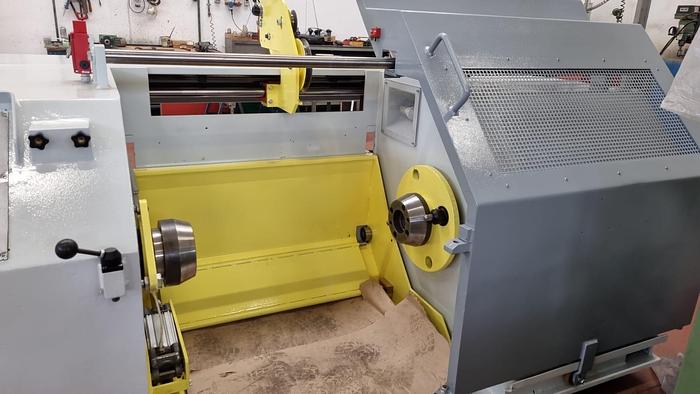

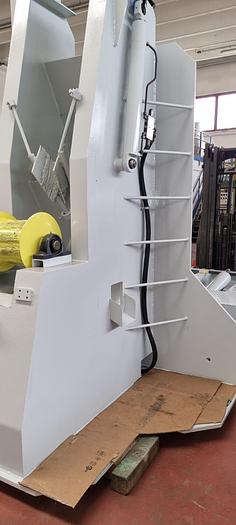

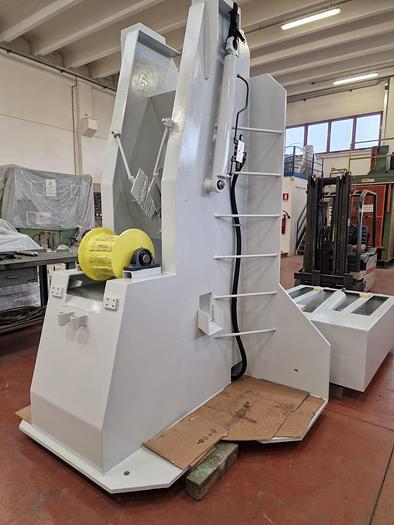

- horizontal axis spooler DIN800, hydraulic.

- new AC electrical panel of the SEI SISTEMI brand.

new electrical machine bord

all components SIEMENS

Inverter – SIEMENS G120

Siemens S7 con CPU 1510
