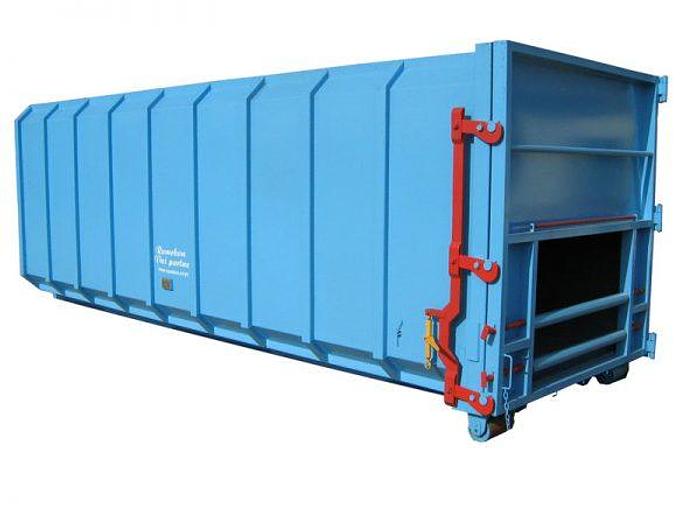

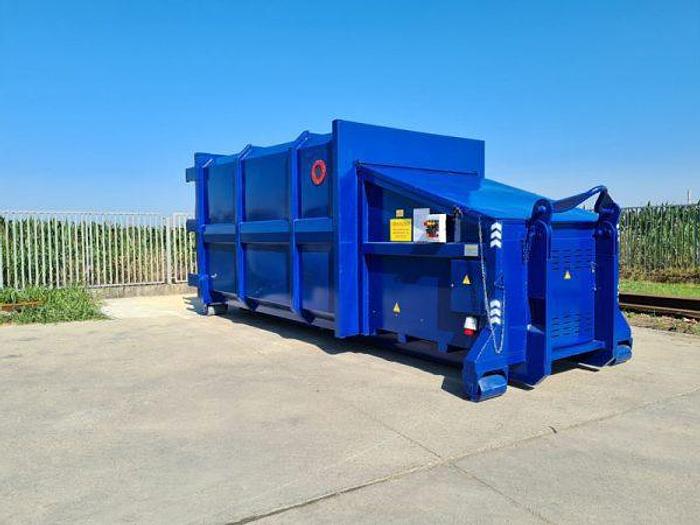

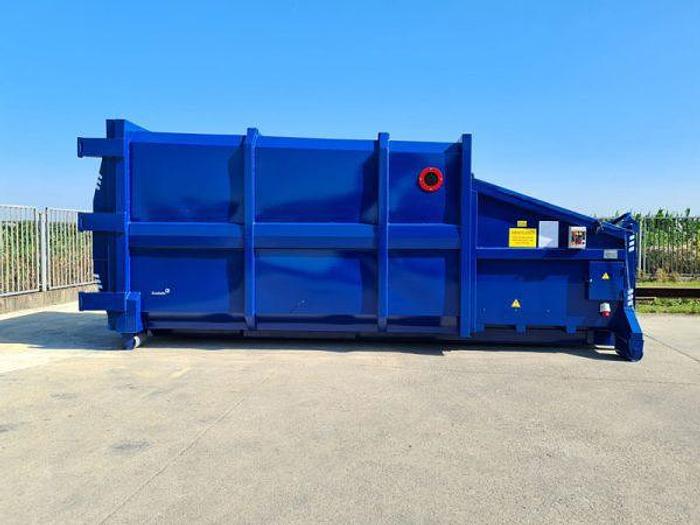

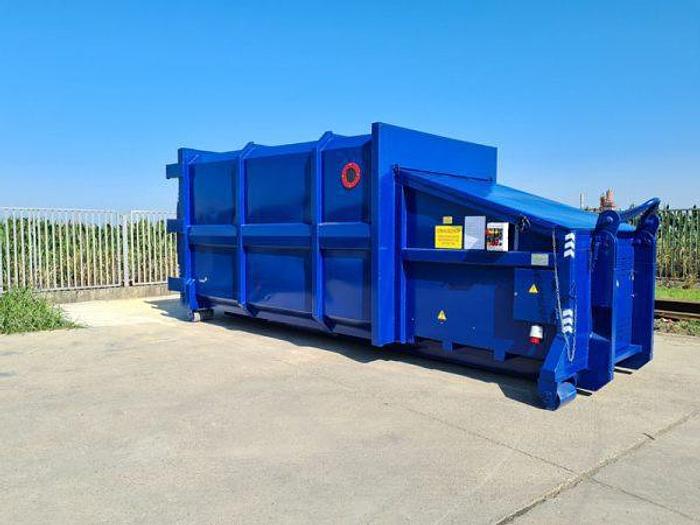

2025 NIKOLA press 24m3

BRAND NEW - WASTE PRESS CONTAINERS / COMPACTORS

PRODUCT SPECIFICATIONS:

Compliance and Standards:

Abrol press containers comply with the EC Machinery Directive 2006/42/EC

CE declaration of product conformity

Abrol - Hook lift press containers are made according to DIN standard 30722

They are manufactured according to ISO 9001 quality procedures, ISO 14001 environmental protection, ISO 45001 occupational safety and DIN EN ISO 3834-2 welding quality procedures.

The possibility of making abrol press containers also according to SS 3021 or NF R 17 108 standards

Capacity and characteristics of the abrol press container:

Capacity of abrol pres containers in the version of 10 m3, 15 m3, 20 m3 or 24 m3

Compaction capacity from 1:3 to 1:5 (depending on the type of material)

Pressing force of 25 tons

5.5 kW motor

Regime operation – Automatic / Manual

Material and construction:

The basic frame is made of INP 180 profile

The body of the container is made of quality steel S235JR with a standard version in sheet thickness 4 mm on the bottom and 3 mm on the sides.

The body of the press (head for compaction) is made of a combination of quality steel S235JR, S355JR and Hardox in sheet thickness from 5 to 25 mm

Vertical and horizontal reinforcements placed on the body of the container

Two rollers Ø 168 mm with a length of 300 mm

Lubricators installed in rollers and hinges

Container roof: Fixed metal

Container door:

Single door with side opening to the side

Handling and transport:

Hook made according to DIN standard 30722 / T1

Transport and manipulation - Abrol tipper truck - (Hook lift system)

Anti-corrosion protection:

2x basic i 1x finishing color according to the RAL map

Possibility of anti-corrosion protection with special coatings
